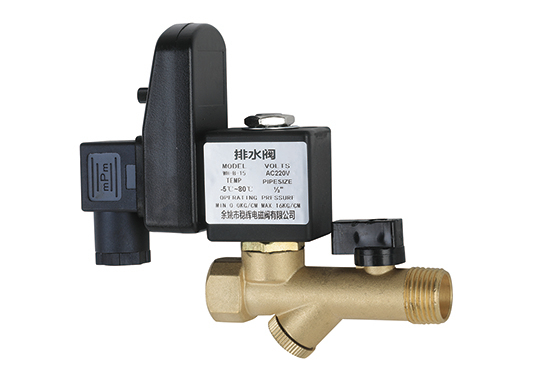

The electronic-drain valve is made of solid state electronic time-setting and solenoid valve, which can make the compressor condensates water drain automatically. It is widely used in filter drier, oil/water segregator, refrigerant compressed air drying machine, drying machine, air compressor drip-feet, and so on.The time of drain and interval can be adjustable according to different needs.
1.pressures: 1.6 Mpa,4.0 Mpa,8.0 Mpa;
2.voltages:AC230V,115 V, DC24V electric; voltage range: ±10%;
3.Caliber: G1/4 ", G3/8", G1/2“;
4.Interval:(OFF)0.5-45 minutes;
5.Drain time:(ON)0.5-10 second;
6.Manual test button:TEST;
7.Protection grade:IP65;
8.It is can susbsitute for the expansive process valve;
9.It is can be Installed simply, full-automatically, without maintenance;
