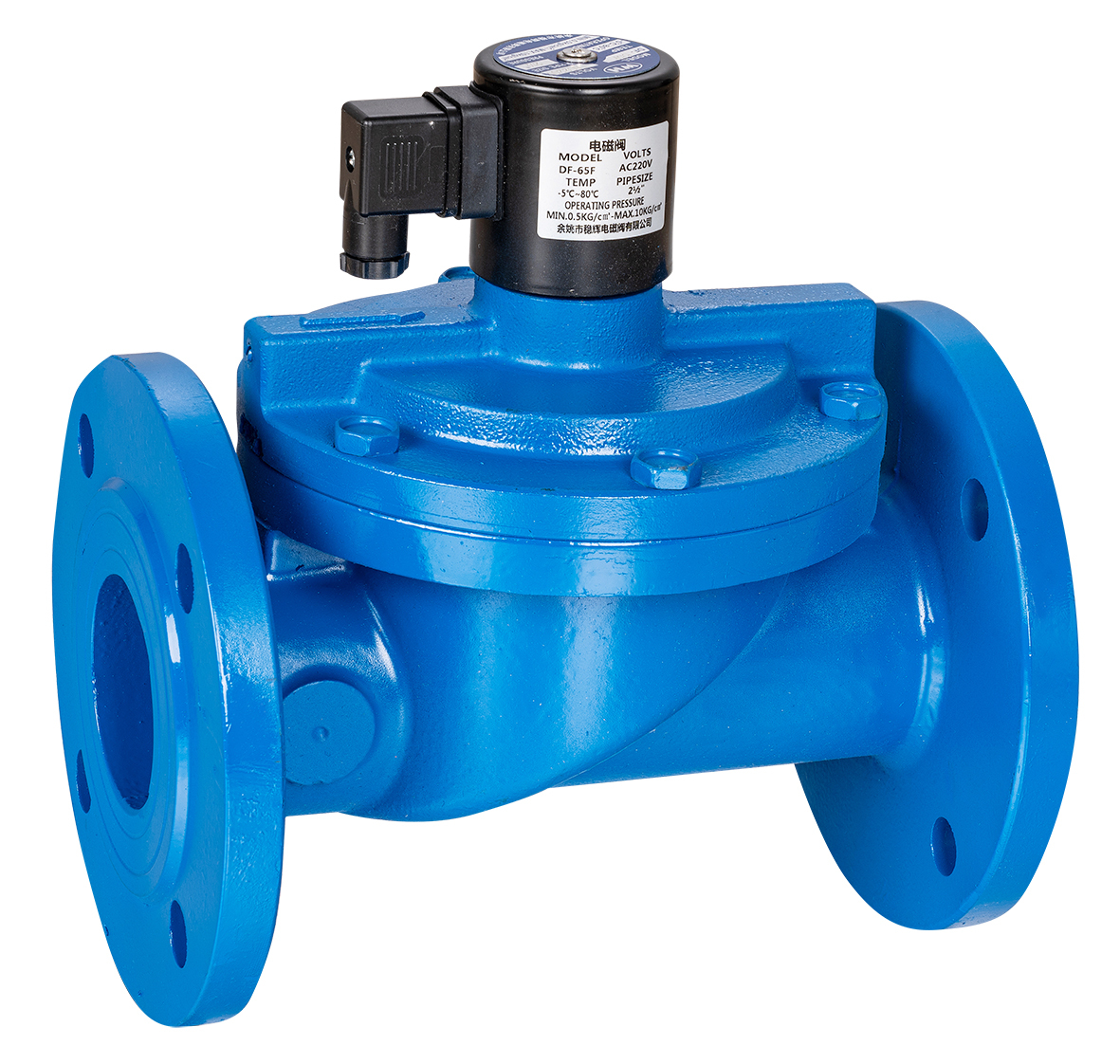

| Product Name | Cast iron solenoid valve water valve |
| Coil material | Copper core coil |
| Voltage resistance | 2~8 kilograms |
| Opening method | Pilot type |
| Body material | Cast iron |
| Working voltage | AC220V/DC24V |
| Temperature resistance | -5~80℃ |
| Available Range | Clean liquids and gases |
| Type | Normally closed(power on open,power-off closed) can be customized to be normally open |
| Product model | Connection type | Flow path | Cv value | Coil configuration | Working pressure | Overall dimension | Body material | |||||||
| Coil insulation class | Power | Normally open | Normally closed | |||||||||||
| VA | W | AC | DC | AC | DC | |||||||||
| AC220V | DC24V | 0.3~16 | 0.3~8 | 0.3~8 | 0.3~8 | Long | Wide | High | ||||||
| DF-40F | Flange link | 40 | 24 | B | 20 | 16 | 0.3~16 | 0.3~8 | 0.3~8 | 0.3~8 | 160 | 150 | 190 | Cast iron |
| DF-50F | 50 | 35 | B | 20 | 16 | 0.3~16 | 0.3~8 | 0.3~8 | 0.3~6 | 200 | 165 | 200 | ||
| DF-65F | 65 | 52 | B | 20 | 16 | 0.3~16 | 0.3~8 | 0.3~8 | 0.3~6 | 250 | 185 | 277 | ||
| DF-80F | 80 | 82 | B | 20 | 16 | 0.3~16 | 0.3~8 | 0.3~8 | 0.3~6 | 268 | 200 | 289 | ||
| DF-100F | 100 | 125 | B | 20 | 16 | 0.3~16 | 0.3~8 | 0.3~6 | 0.3~6 | 350 | 220 | 316 | ||
| DF-125F | 125 | 220 | B | 70 | 50 | 0.3~16 | 0.3~8 | 0.3~6 | 0.3~6 | |||||
| DF-150F | 145 | 280 | B | 70 | 50 | 0.3~16 | 0.3~8 | 0.3~8 | 0.3~6 | |||||
| DF-65SF | 65 | 52 | F | 30 | 30 | 0.3~16 | 0.3~8 | 0.3~8 | 0.3~6 | Stainless steel | ||||
| DF-80SF | 80 | 82 | F | 30 | 30 | 0.3~16 | 0.3~8 | 0.3~8 | 0.3~6 | |||||
| DF-100SF | 100 | 125 | F | 30 | 30 | 0.3~16 | 0.3~8 | 0.3~8 | 0.3~6 | |||||
